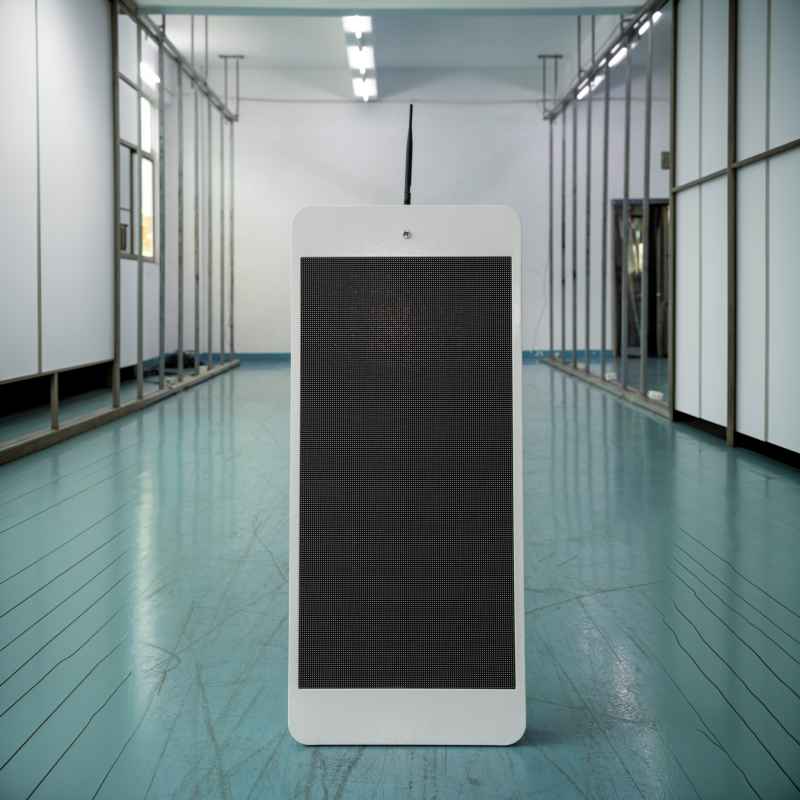

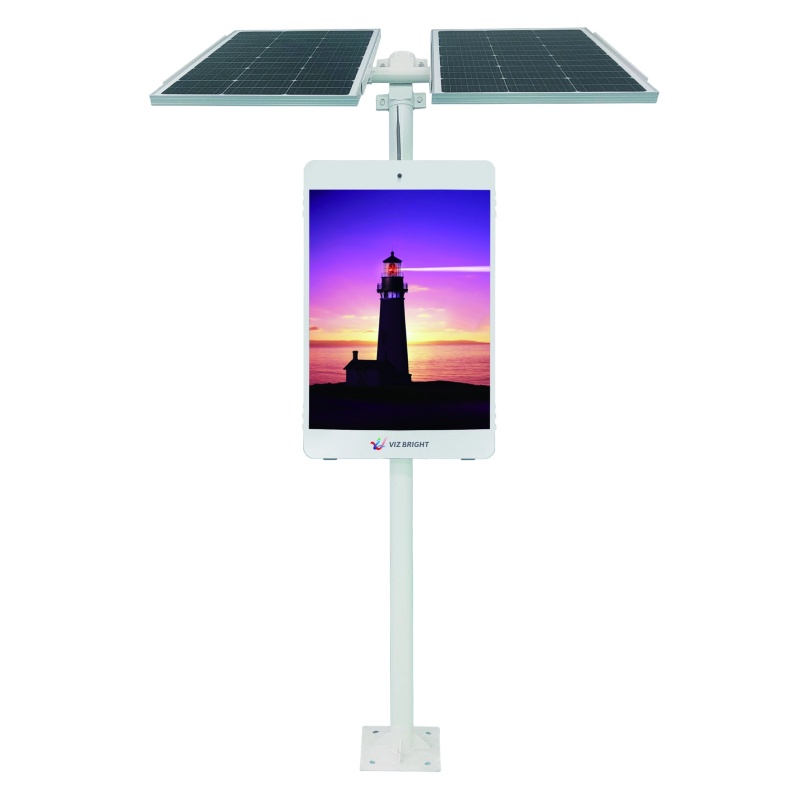

Solar LED Display PRO Screen

   Powered by solar energy, our outdoor displays offer zero-cost operation, providing an economical and eco-friendly solution for outdoor advertising and information dissemination.

   By eliminating the need for electrical wiring, these screens offer unmatched installation flexibility, making them ideal for locations without traditional power sources.

   With a simple installation process, solar-powered outdoor displays can be quickly deployed, saving time and resources while minimizing environmental impact and enhancing operational efficiency.


Product Detail

Specifications:

rated woltage
12.8V
rated capacity
100AH
working voltage rage
10-14.6V
recharging time
about 8-12h
csolar panel size
600mm*950mm

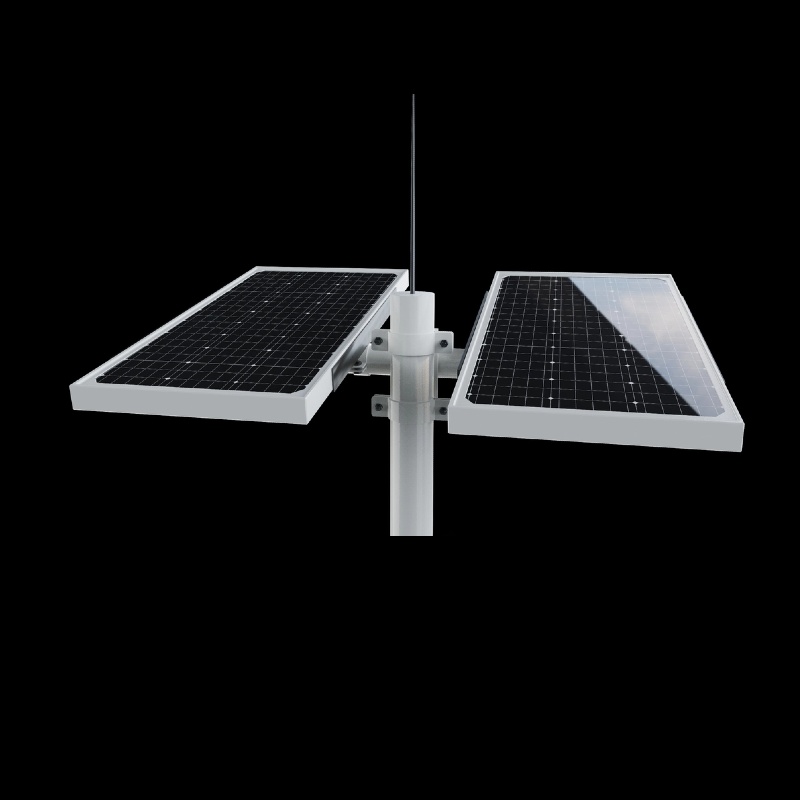

solar panel powe
Single crystal 100w
standard discharge current
1280wh
largest duration working
fully charged battery can work about 80h in rainy days
recharging cycle file
≥3000times
battery weight
about 20KG
power rerain indication
erternal intelligent power indicaton window
cooling method
entire display use thermostatic fan and natural cooling
 altitude
≥4000M
max charge capacity:
45A
pixel pitch3.84mmpixel density67816 dots/sqm
module size
200mm*200mm
PCB thickness4 layers private mode pcb with 1.6mm thicknes
module resolution
52*52 dots
IP levelScreen IP65,cabinet IP54
entire display size640mm*1000mmservice method
Front service,modular installation
scan mode13sInstallation methodpillar,hanging,embedded embedded
refresh rate≥3840Hzstorage environmenttemperature:-25℃-70℃;humidity:15%-90%RH
largest brightness6000-6500cd/㎡control method4g,wifi,u disk and cloud cluster control, support to set automatically switch or/off time
synchronization functionSupport 4G backstage synchronize live video and voice call system (optional)External equipmentweather,wind speed,temperature and humidity,light sensor,PM25,soil composition and other information collection devices (optional)
average powe consumption50-80W/setloudspeakerThe display has builtin loudspeaker and support common audio format
grey level65536(15bit)cooling systembuiltin thermostatic fan (constant temperature index:1-25° 1500 RPM、25-35° 3000 RPM、35-45° 4000 RPM、>45° 5500 RPM)

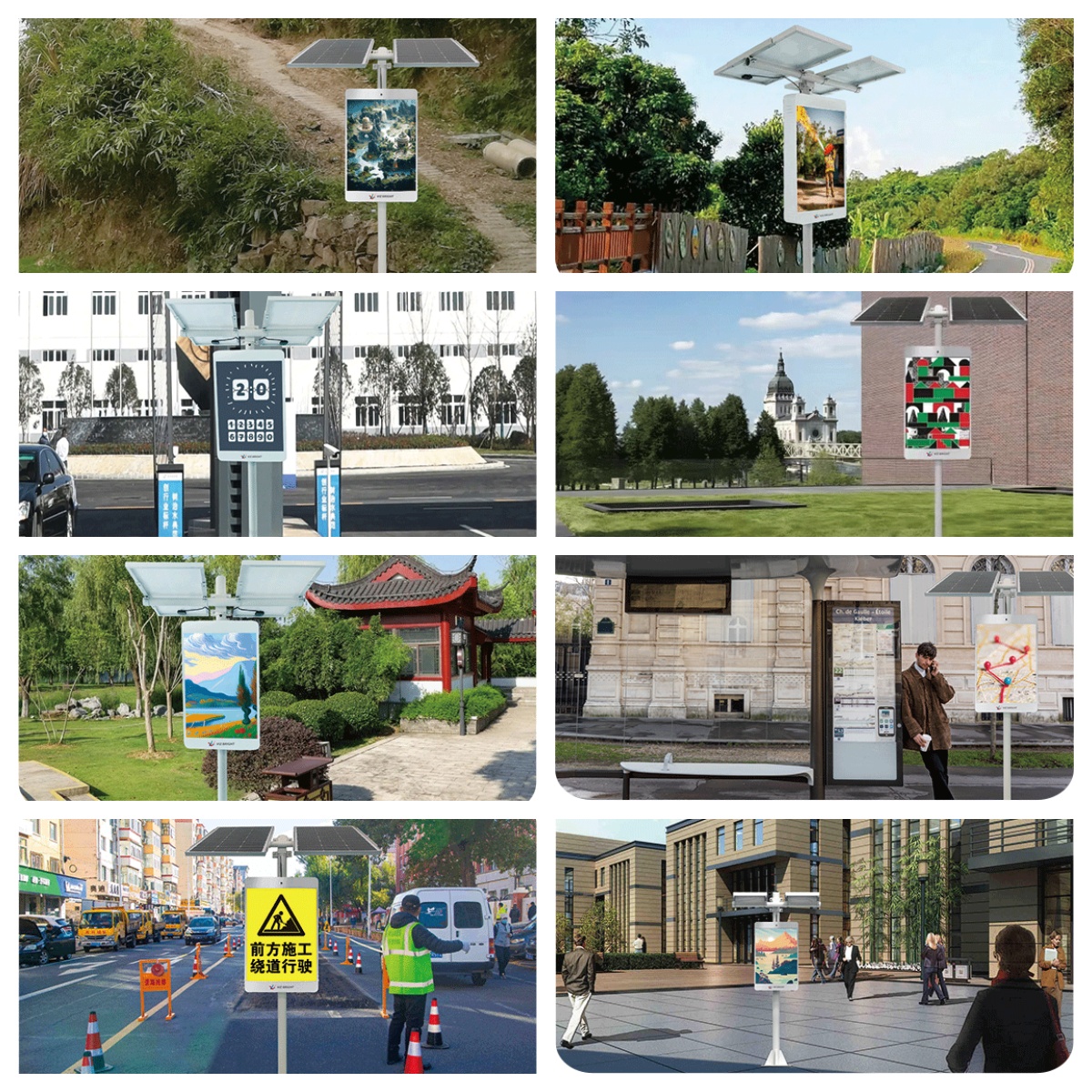

Applications:
