Powered by solar energy, our outdoor displays offer zero-cost operation, providing an economical and eco-friendly solution for outdoor advertising and information dissemination.
By eliminating the need for electrical wiring, these screens offer unmatched installation flexibility, making them ideal for locations without traditional power sources.
With a simple installation process, solar-powered outdoor displays can be quickly deployed, saving time and resources while minimizing environmental impact and enhancing operational efficiency.
Product Detail
Specifications:
rated woltage | 12.8V | rated capacity | 280AH |
working voltage rage | 10-14.6V | recharging time | about 9-13h |
csolar panel size | 600mm*950mm | solar panel powe | Single crystal 100w |
standard discharge current | 1280wh | largest duration working | fully charged battery can work about 70h in rainy days |
recharging cycle file | ≥3000times | battery weight | about 27KG |
power rerain indication | erternal intelligent power indicaton window | cooling method | entire display use thermostatic fan and natural cooling |
altitude | ≥4000M | max charge capacity: | 140A |
pixel pitch | 3.84mm | pixel density | 67816 dots/sqm |
module size | 200mm*200mm | PCB thickness | 4 layers private mode pcb with 1.6mm thicknes |
module resolution | 52*52 dots | IP level | Screen IP65,cabinet IP54 |
entire display size | 600mm*1600mm | service method | Front service,modular installation |
scan mode | 13s | Installation method | pillar,hanging,embedded embedded |
refresh rate | ≥3840Hz | storage environment | temperature:-25℃-70℃;humidity:15%-90%RH |
largest brightness | 6000-6500cd/㎡ | control method | 4g,wifi,u disk and cloud cluster control, support to set automatically switch or/off time |
synchronization function | Support 4G backstage synchronize live video and voice call system (optional) | External equipment | weather,wind speed,temperature and humidity,light sensor,PM25,soil composition and other information collection devices (optional) |
average powe consumption | 100-150W/set | loudspeaker | The display has builtin loudspeaker and support common audio format |
grey level | 65536(15bit) | cooling system | builtin thermostatic fan (constant temperature index:1-25° 1500 RPM、25-35° 3000 RPM、35-45° 4000 RPM、>45° 5500 RPM) |

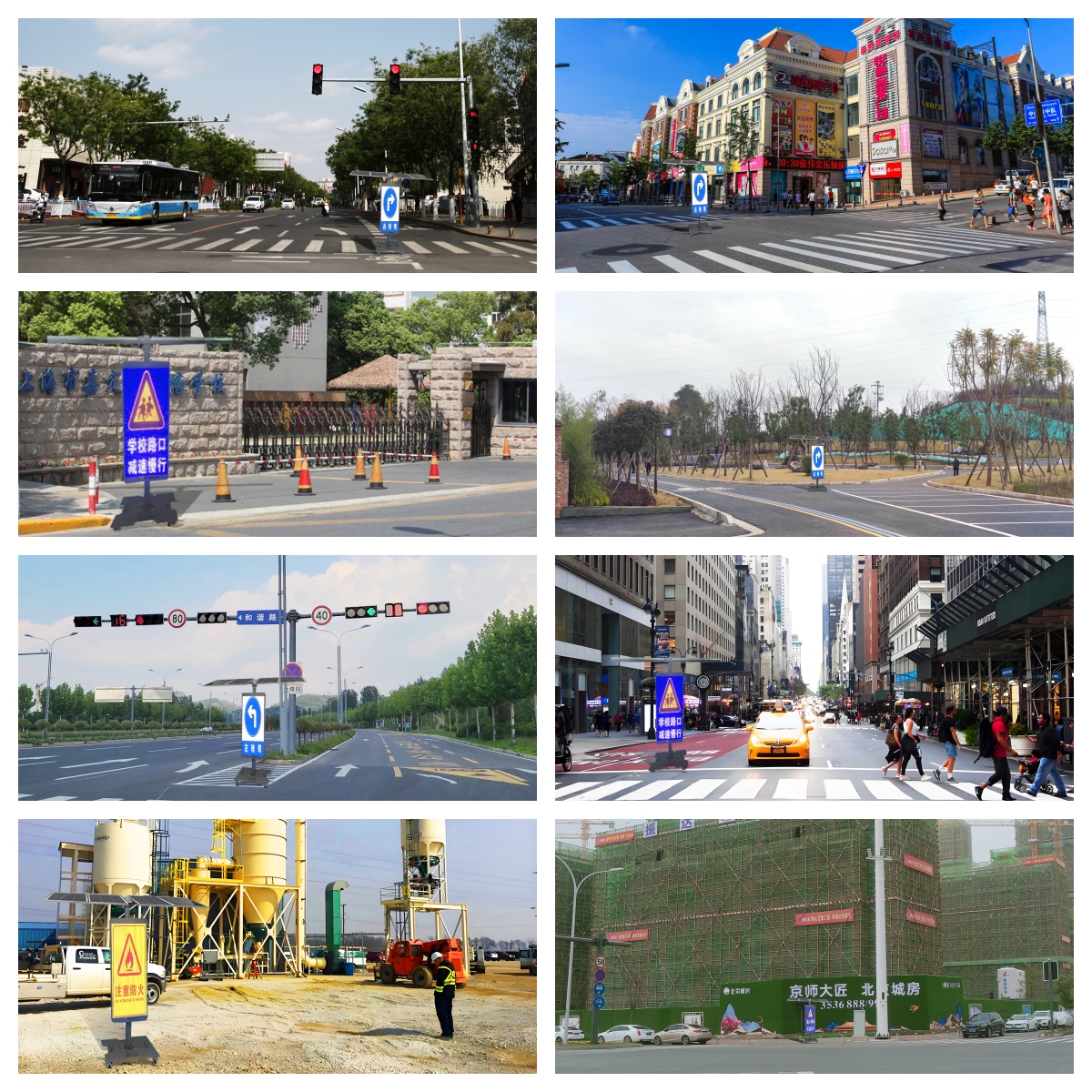

Applications:
